Case Study: A Truly Custom Home Theater

Case Study: A Truly Custom Home Theater

A lofty Theater design

As you can probably guess, you never know where you will be asked to build a home theater. Having a completely blank slate is almost unheard of, and this particular project began its life as a bonus room over a new home’s garage space.

Like most structures not built from the ground up as dedicated screening rooms, this build had its fair share of design challenges. Chief among them was the litany of angled walls, the vaulted ceiling, and the need for a doorway to access a hidden attic library space in the middle of the room.

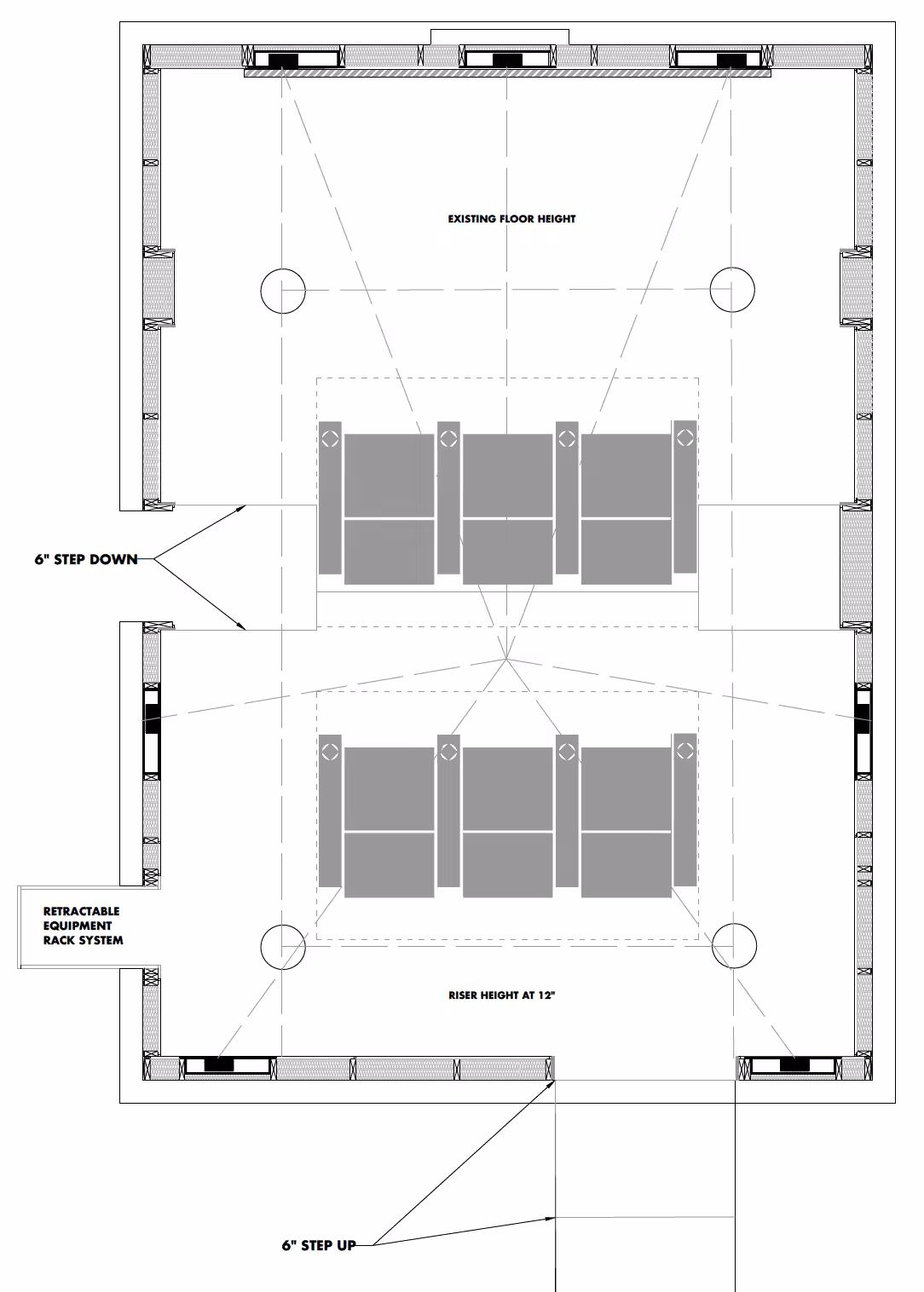

Theater Design Process
Case Study: A Truly Custom Home Theater 14

We decided to break up the long walls in the room with columns to serve the dual function of providing visual interest and concealing the extra depth needed for bass trapping to tighten up the acoustics.

The real elephant in the room was the puzzle of maintaining access to the adjacent attic library space without compromising the theater’s overall design or acoustics.

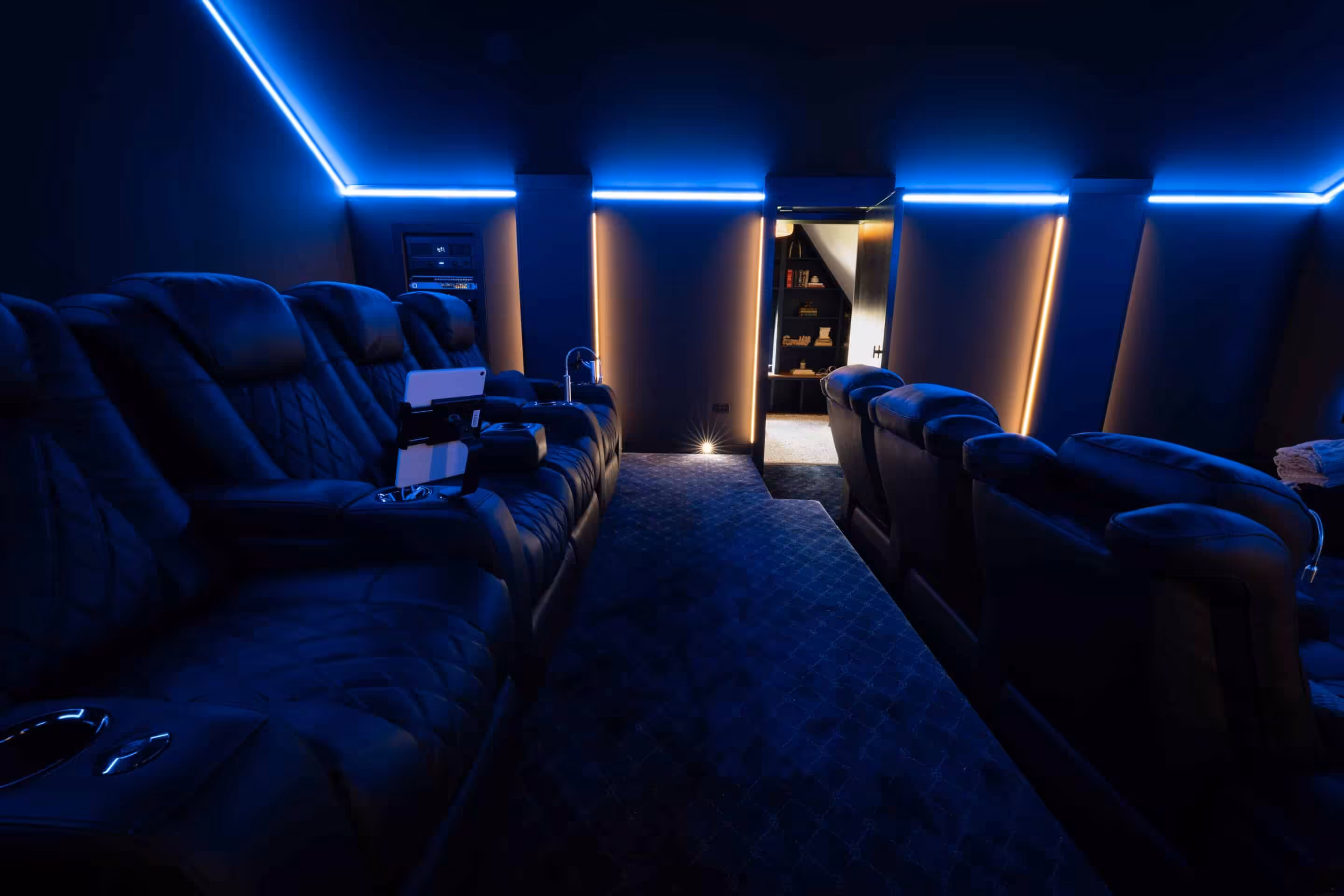

We ultimately settled on concealing a door inside one of the room’s decorative columns.

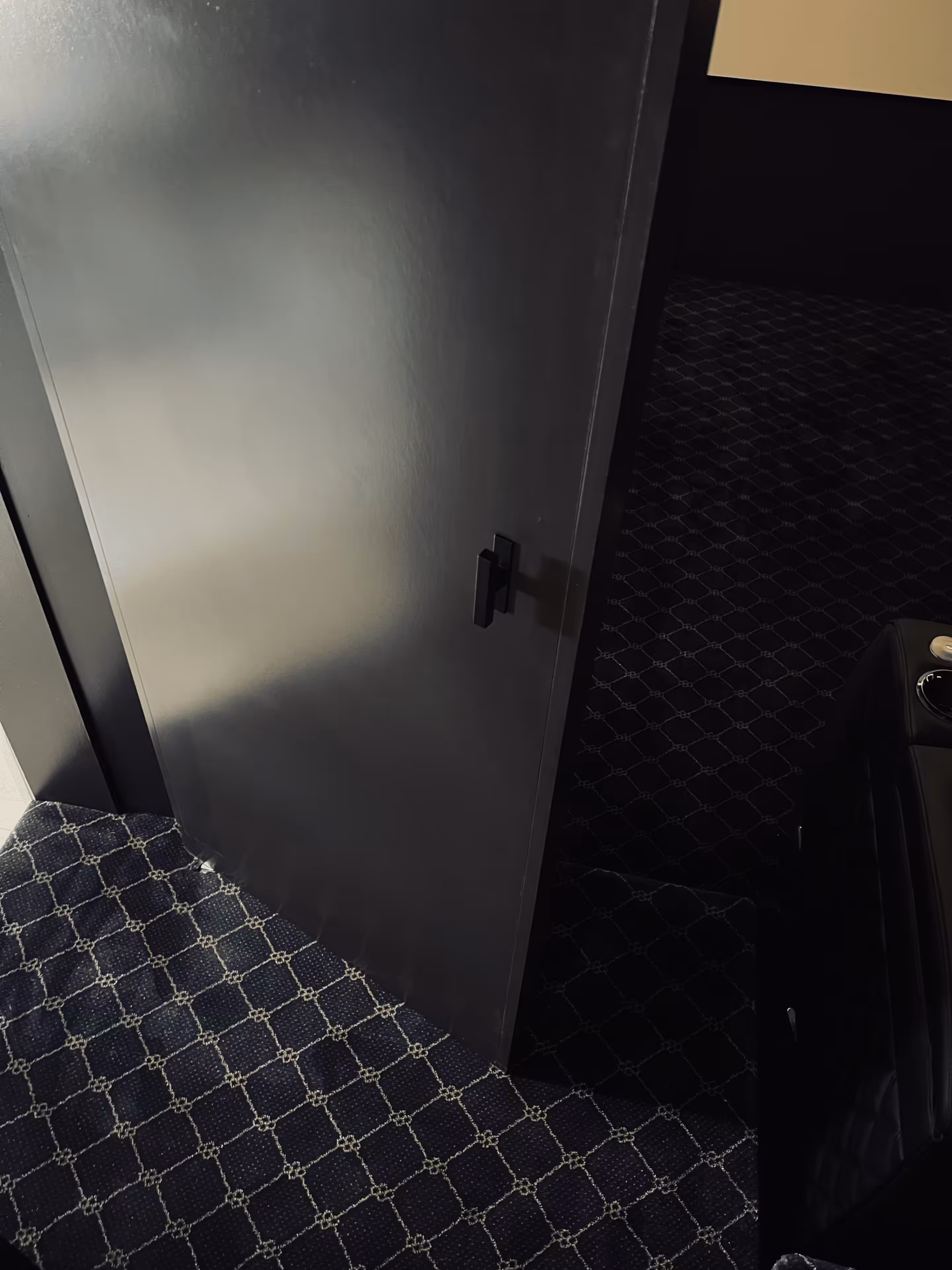

Img 6909
Custom Build Hidden Door

This was accomplished using a custom door, with acoustic treatments applied directly to its face.

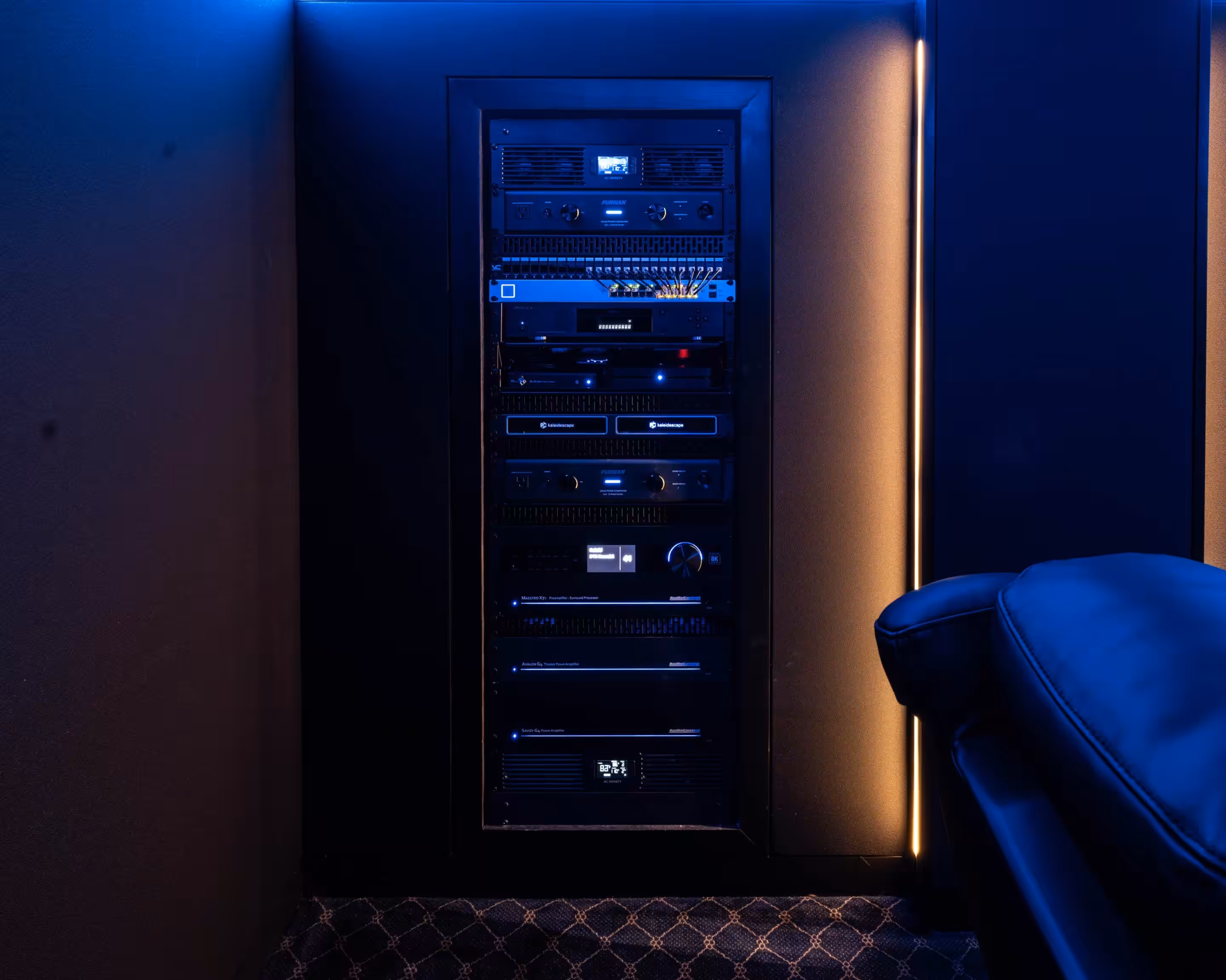

Space was also at a premium, so we also needed to find a way to minimize gear deployment inside the room.

We were able to commandeer some unclaimed attic space and installed a recessed rack to house all the equipment. This kept things accessible while also not encroaching on the livable space in the room.

Audio:

The client opted for identical in-wall Focal 300 series speakers in all seven primary positions and a timber-matched set of 8″ In-Ceiling speakers for Atmos.

Focal 300 Series In-Wall Speaker
Focal 300 Series IWLCR Speakers

A duo of Focal subwoofers rounded out the low end.

Focal 1000 Watt Subwoofer
Focal Sub 1000F Subwoofer

A Nice Remote

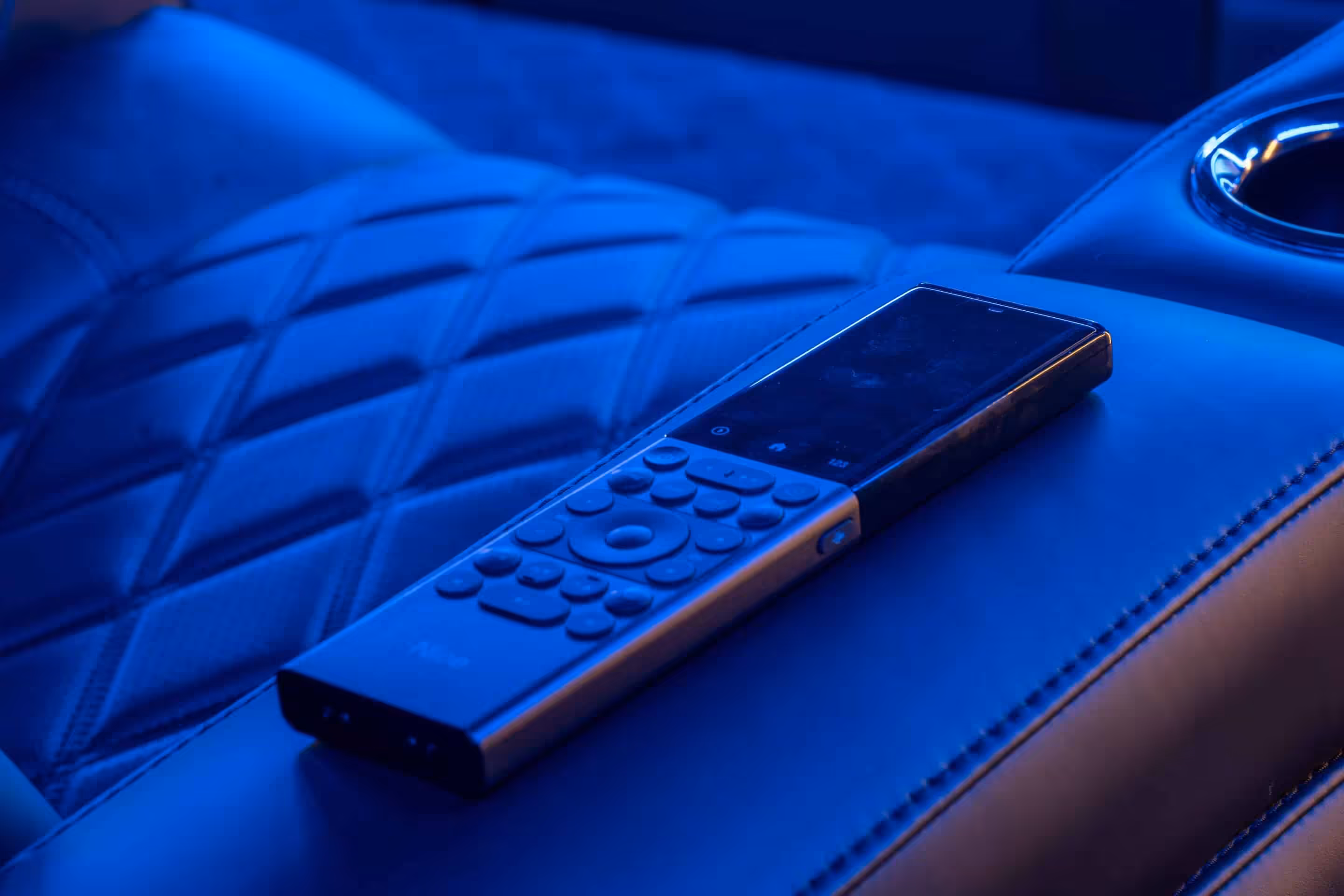

Nice Hr40 Remote Control
Nice HR40 Remote Control

This also marked our first deployment of the new Nice HR40 remote control. It offers seamless control of all of the sources in the system and even shows cover art from the Kaleidescape during playback.

The finest source: Kaleidescape

P1036976 1 Scaled
Kaleidescape Strato Interface

It’s been a long-standing secret that if you want the best picture quality, there’s only one place to get your movies.

Long hailed by Hollywood moguls and used in their own personal theaters, the Kaleidescape Strato player serves up movies at a higher quality than HD Blu-Ray with unadulterated audio to match.

Construction Gallery:

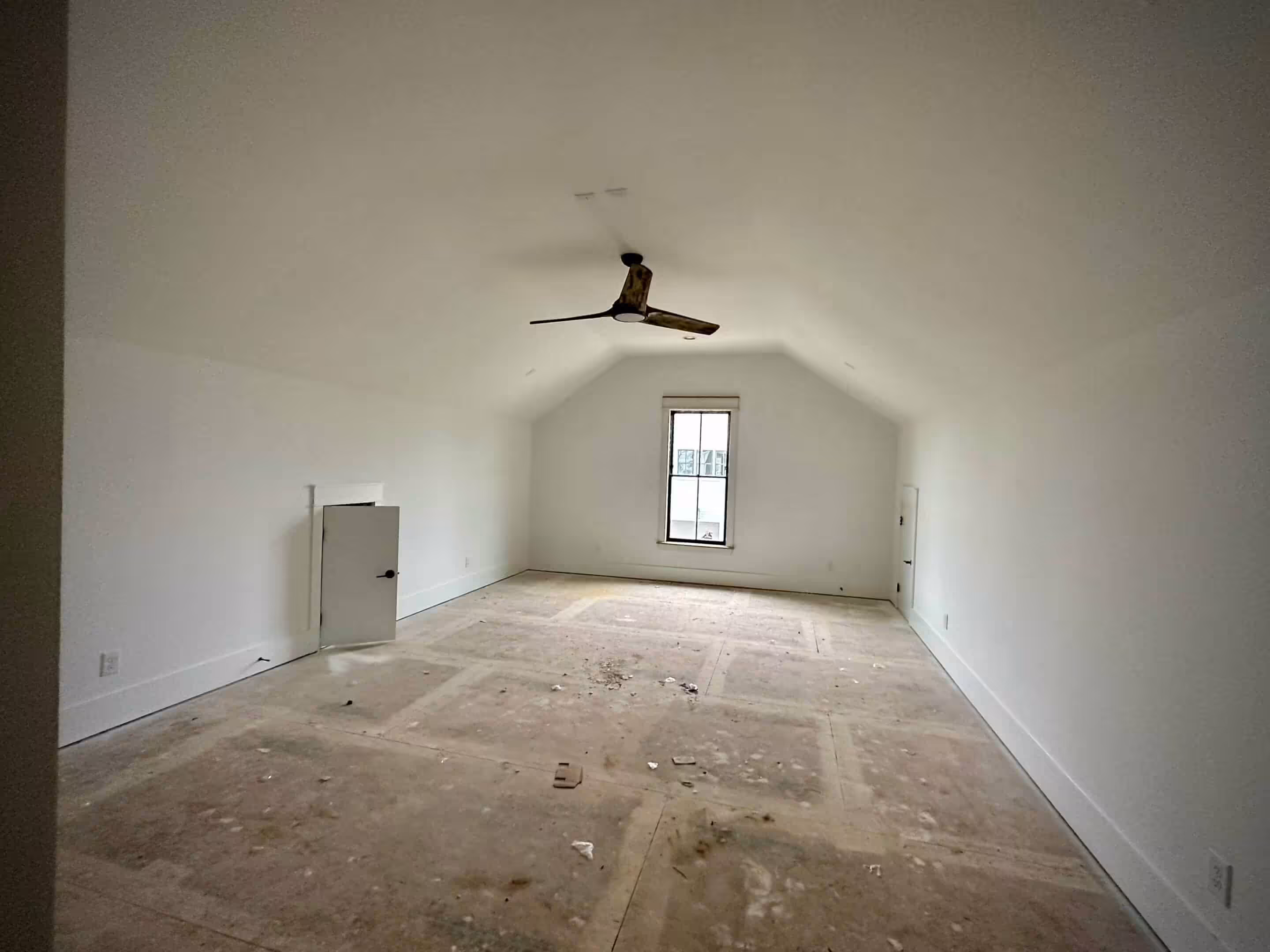

Before
The space prior to transformation

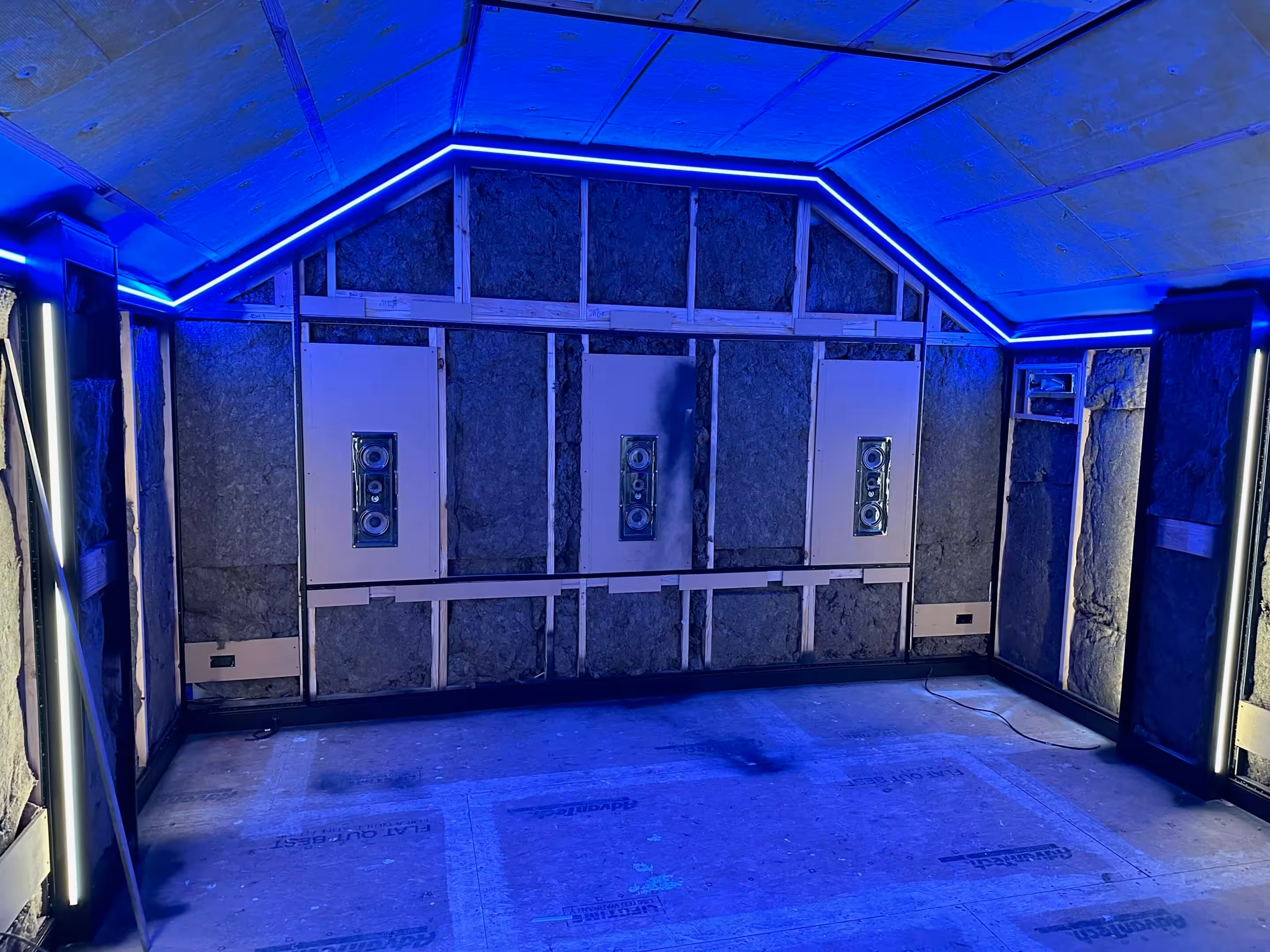

Img 2154 Scaled
Custom acoustic treatments prior to the installation of the fabric walls

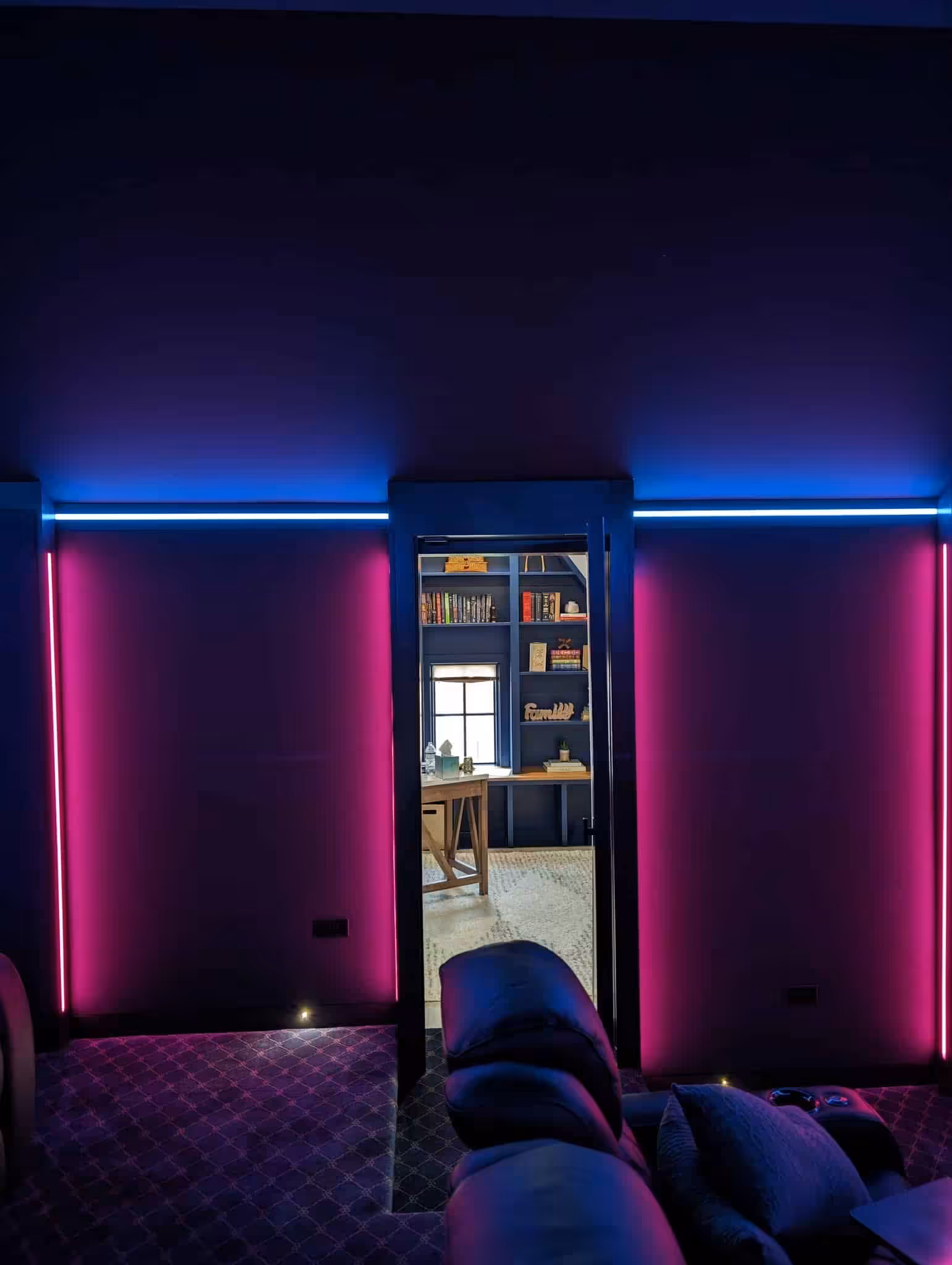

396742581 10228647884654602 4528877014518211829 N
The Secret Room

P1036969 Scaled

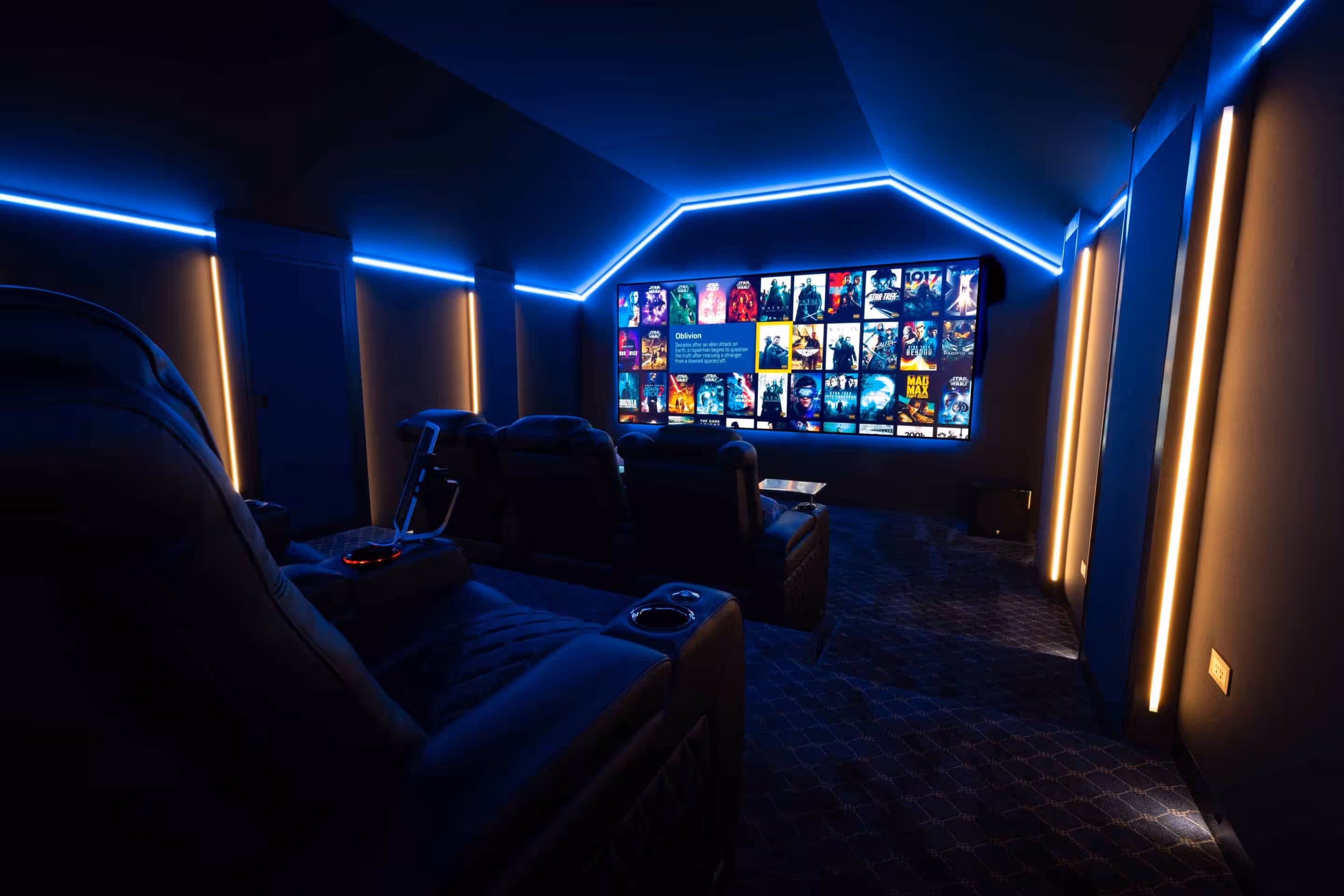

Completed Home Theater


Full Equipment List:

System Configuration: 7.4.2

Visual:

  • Projector: JVC NZ-7 8K Projector
  • Screen: 150″ Screen Innovations Zero Edge Pro, Acoustically Transparent
  • Video Processing: MadVR Envy MKII Extreme

Sound:

  • Audio Processor: AudioControl Maestro X7s
  • Amplification : AudioControl Savoy G4 , Audio Control Pantages G4
  • Speakers: 7x Focal 300IWLCR , 4x Focal 300ICW8 (Atmos)
  • Subwoofers: 2x Focal Sub1000F
Everything Else:

Sources: Kaleidescape Strato C, Oppo Blu-Ray, Nvidia Shield, Bluesound Node, and DirecTV Gemini

Control: Nice / Elan SC-100 & Nice HR-40 Remote Control

Lighting: Proluxe COB RGB-W Linear LED with matching extrusions

Seating: Valencia Theater Seating – Tuscany Ultimate Slim

Fabric: Guilford of Maine Anchorage (Charcoal with Cobalt Accents)

Paint: Tricorn Black
